PostgreSQL Database Environment Preparation

Overview

This article describes the steps required to prepare a PostgreSQL database environment.

Steps

Confirm the Current Database Version

Use PostgreSQL 10 or later.

Notes

  • The following field types are not currently supported for synchronization:
  • time with time zone
  • timestamp with time zone

Modify REPLICA IDENTITY

This property determines which fields are recorded in the log when data is UPDATEd or DELETEd.

  • DEFAULT - Updates and deletes include the previous values of the primary key columns.
  • NOTHING - Updates and deletes do not include any previous values.
  • FULL - Updates and deletes include the previous values of all columns.
  • INDEX index_name - Update and delete events include the previous values of the columns defined by the index named index_name.

Use the following statement:

Note: All tables that need to participate in Real-time Sync should be configured this way.

alter table schema.tablename REPLICA IDENTITY FULL;

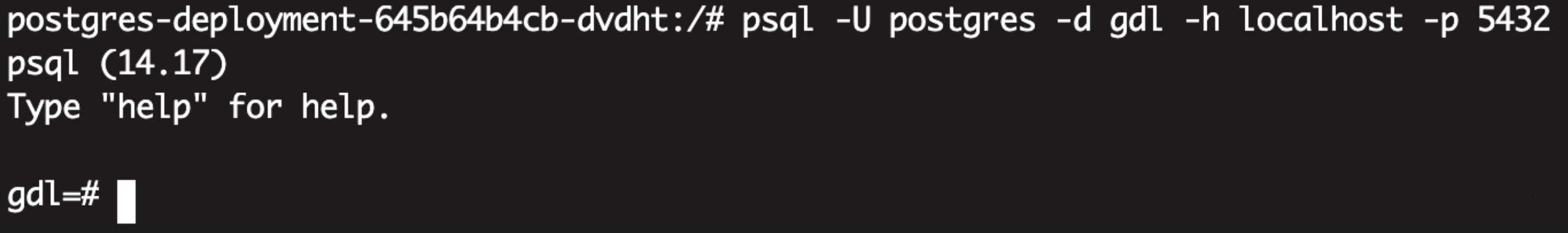

  1. Use the default postgres account to log in to the database named databasename. Here, -U specifies the user, -d specifies the database, -h specifies the server, and -p specifies the port.
psql -U postgres -d databasename -h localhost -p 5432

After entering the password, you will log in to the database.

  1. For example, to update a table named orders_table in the public schema, run the following statement:
alter table public.orders_table REPLICA IDENTITY FULL

Confirm User Permissions

The steps above use the default postgres user. If you use a different user for configuration, that user must have the PostgreSQL replication role, the PostgreSQL login role, and SELECT permission on the tables that need to be synchronized.

  1. Create a user with the PostgreSQL replication role and PostgreSQL login role.

  2. Grant the user SELECT permission on all tables in the specified schema:

Note: Replace schemaname with the schema name and username with the actual user name.

GRANT SELECT ON ALL TABLES IN SCHEMA schemaname TO username;
  1. Grant the replication and login permissions to the user.

Go to the data directory under the PostgreSQL installation path, locate postgresql.conf and pg_hba.conf, and modify both files.

  • Modify the PostgreSQL replication slot settings.

In this example, postgresql.conf is located in /var/lib/pgsql/12/data. Use vi /var/lib/pgsql/12/data/postgresql.conf to edit the file, or replace the path with the actual location in your environment. Append the following configuration at the end of the file:

Note: Alternatively, locate the following settings in the file, uncomment them, and update their values.

wal_level = logical
max_wal_senders = 10
max_replication_slots = 10
  • Configure the user's replication permission.

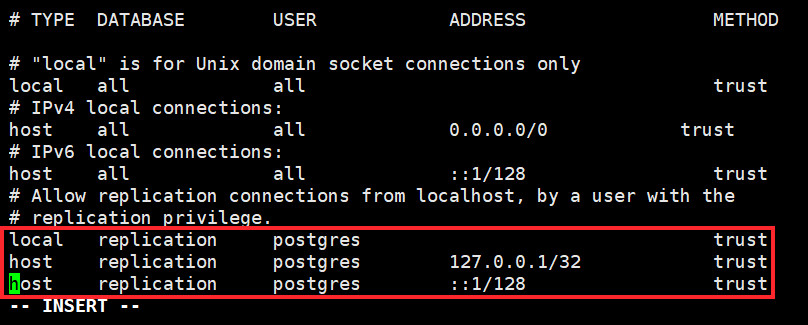

In this example, pg_hba.conf is located in /var/lib/pgsql/12/data. Use vi /var/lib/pgsql/12/data/pg_hba.conf to edit the file, or replace the path with the actual location in your environment. Remove the # in front of the two lines highlighted in the figure below:
