Parameter Assignment

Overview

The Parameter Assignment node is used in an Offline Dev workflow to assign query results from database tables or BI datasets to task parameters. Once configured, downstream nodes can reference these dynamic parameters directly in scenarios such as incremental updates, conditional branch evaluation, script execution, file reading, and API requests.

Business Value

The Parameter Assignment node solves the problem of reusing upstream results in downstream nodes. By converting query results directly into parameters, you can pass incremental timestamps, drive conditional logic, construct dynamic script inputs, and assemble request parameters without adding extra intermediate processing logic. This reduces workflow complexity and avoids redundant data synchronization.

Applicable Scenarios

The Parameter Assignment node is suitable when you need to extract a single value or a set of field values from upstream results and continue using them in downstream nodes.

1. During incremental updates of a detail table, first retrieve the latest timestamp of synchronized data, then sync only data greater than that timestamp to avoid duplicate writes.
2. When a Conditional Branch depends on source table status to decide the execution path dynamically, first extract the required condition value by using Parameter Assignment.
3. When Python Node, SQL Node (Advanced), or HTTP Node must build script parameters, query conditions, or request bodies dynamically from upstream results, reuse the assigned parameters directly.

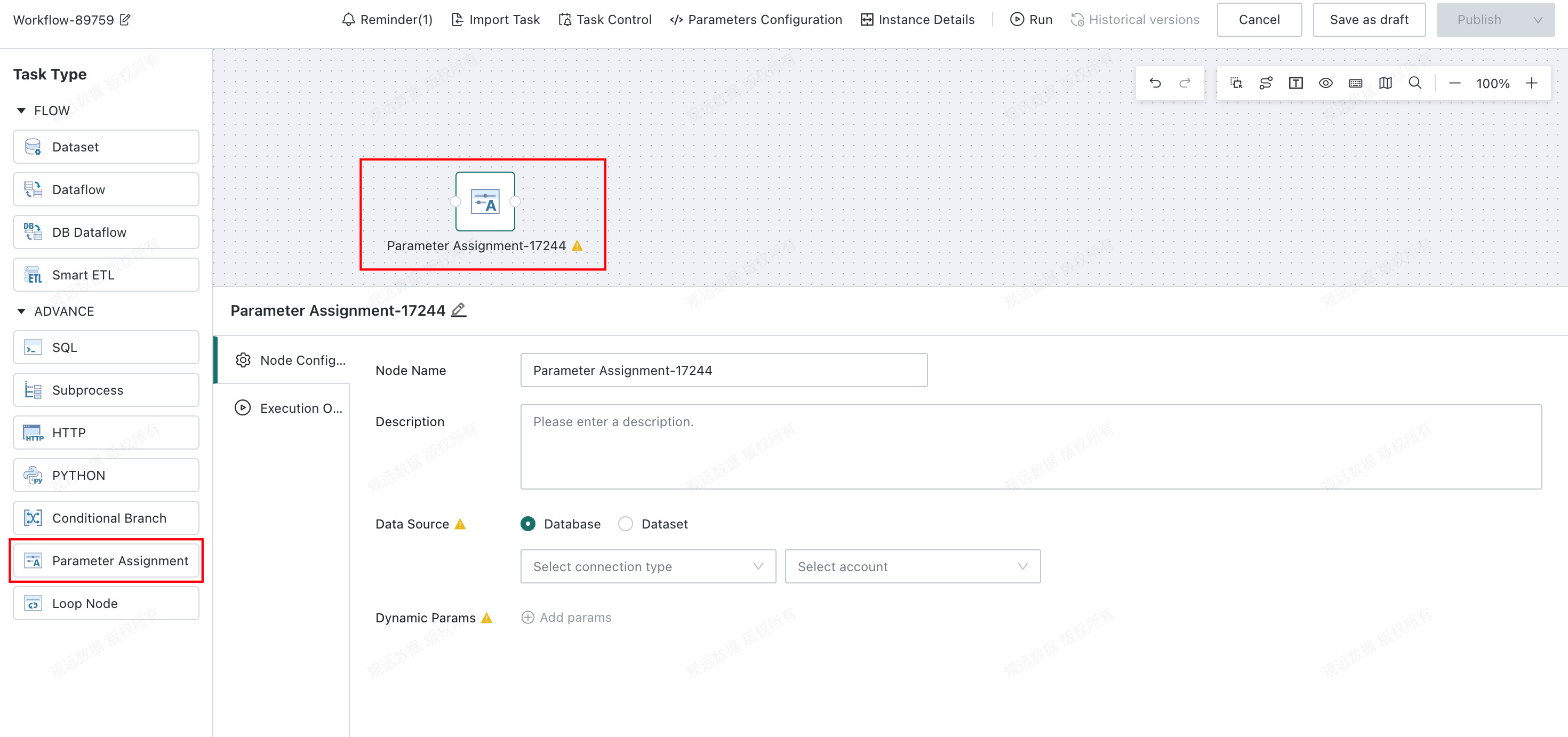

Add a Parameter Assignment Node

This section explains how to add a Parameter Assignment node to a workflow and open its configuration page.

Entry Point

On the Task Editing page, choose the Parameter Assignment node type when adding a new node.

Configure the Data Source

This section explains how to configure the data source for a Parameter Assignment node. The node supports values from both databases and BI datasets. The default data type is Database.

Entry Point

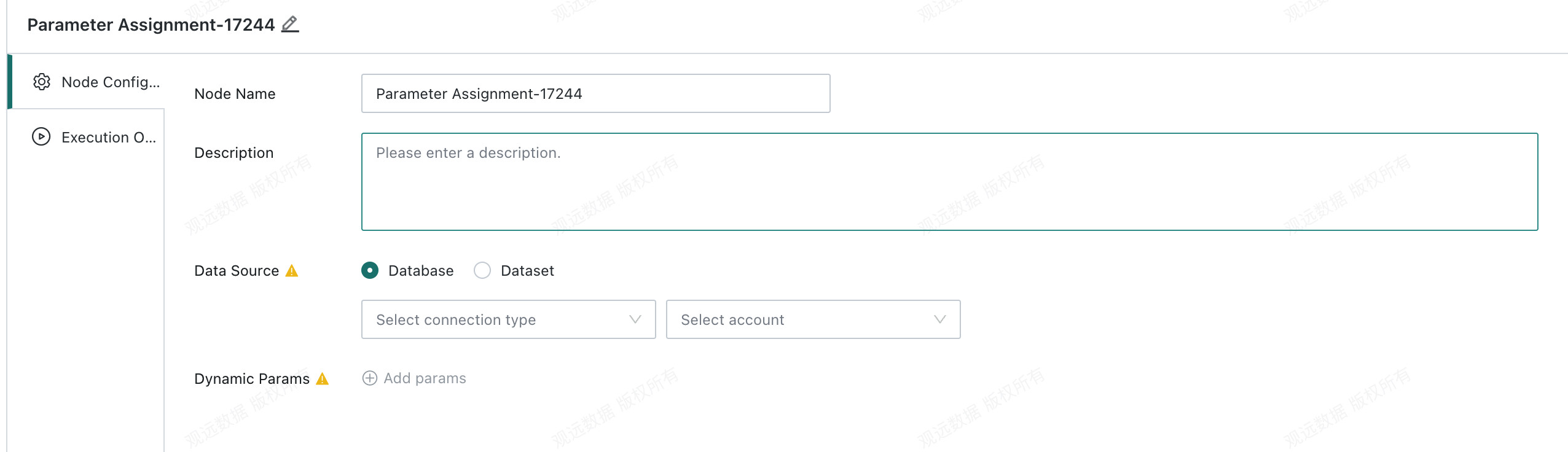

On the Parameter Assignment Node Configuration page, first complete the basic information and data source settings.

Basic Configuration Items

After the node is created, configure the following basic information first:

Configuration Item	Description
Node Name	Defines the name of the current Parameter Assignment node for easier identification in the workflow.
Description	Describes the purpose of the node for collaboration and later maintenance.
Data Source	Specifies the source type of the parameter value.
Data Type	Supports Database or BI Dataset. The default value is Database.

Retrieve Values from a Database

When Data Type is set to Database, follow these steps.

1. On the Parameter Assignment Node Configuration page, set Data Type to Database.
2. Select the database connection information.

Configuration Item	Description
Select Database	Specifies the database to be queried.
Account Type	Required. Determines the connection method.
Data Account	Required. Used to connect to the target database.
Display Area	Shows the selected database and account information.

3. Enter the query statement in the Query SQL field.

Configuration Item	Description
Query SQL	Required. Use the syntax of the selected database to write a select query.
Supported References	Supports time macro parameters, task parameters, and global parameters.
Editing Capability	Supports formatting and expanded view.
Display Area	Shows the SQL content.

Retrieve Values from a BI Dataset

When Data Type is set to BI Dataset, follow these steps.

1. On the Parameter Assignment Node Configuration page, set Data Type to BI Dataset.
2. Select the dataset information.

Configuration Item	Description
Dataset Type	Choose the type of the target dataset.
Specific Dataset	Required. Specifies the dataset to be queried.
Display Area	Shows the selected dataset information.

3. Confirm or modify the query statement in the SQL Query field.

Configuration Item	Description
SQL Query	Required. The default value is select * from XXX dataset.
Query Result	Keeps only the data that matches the query conditions.
Supported References	Supports task parameters, global parameters, and time macros.
Display Area	Shows the SQL content.

4. If you need to switch datasets, select another target dataset.
   The system refreshes the SQL Query content automatically.

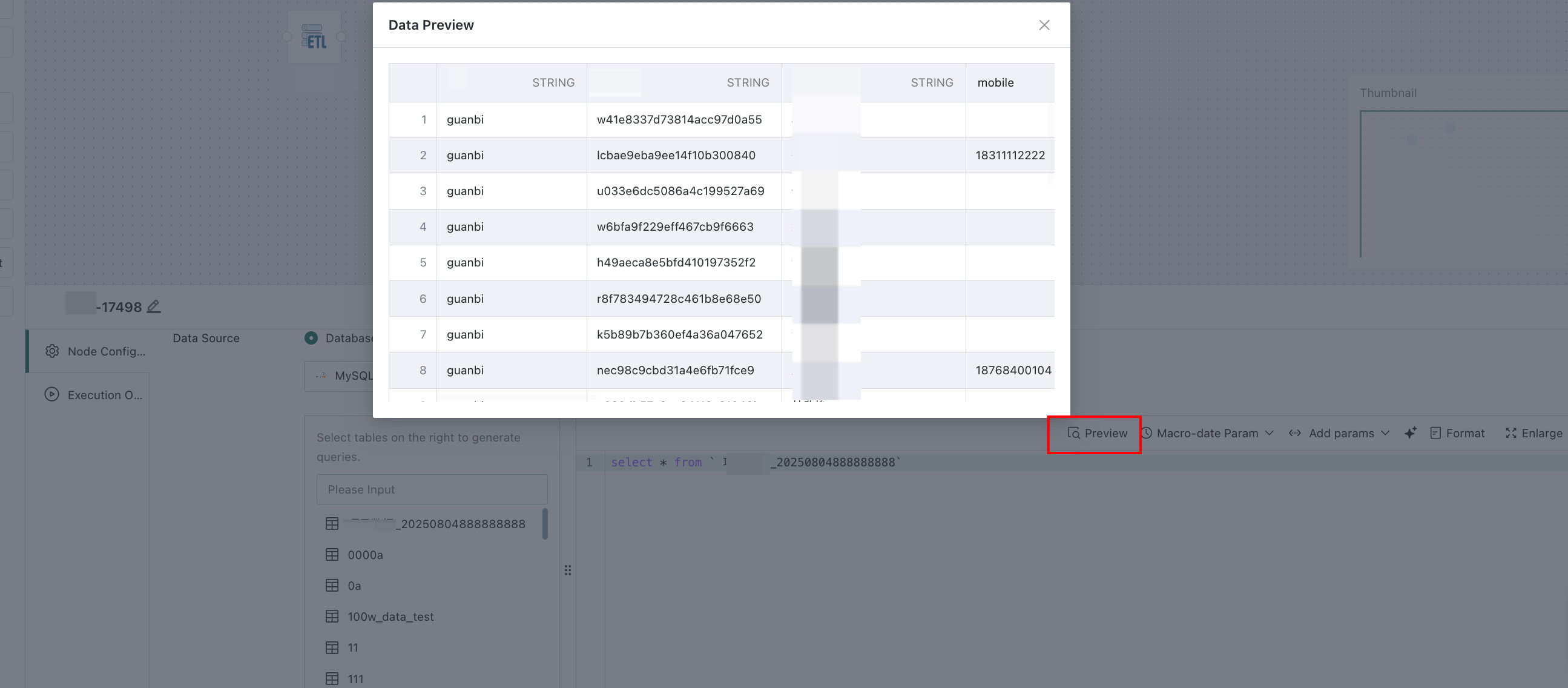

Preview Data

After completing the data source configuration, it is recommended to preview the data first and confirm that the fields and result set match expectations.

1. On the Parameter Assignment Node Configuration page, preview the data after all required fields are configured.
2. The system returns the preview result and shows up to 30 rows.
3. When the SQL changes, the system prompts: The SQL has changed. Please preview again.

If dynamic parameters have already been configured and any required data source field is modified, the system prompts you to preview the data again. After re-previewing, if the fields do not match the configured dynamic parameters, the system displays a warning.

Configure Dynamic Parameters

This section explains how to configure dynamic parameters based on query results. Multiple dynamic parameters are supported. Each parameter can extract either a single value or a full column of values from the query result.

Entry Point

On the Parameter Assignment Node Configuration page, after completing required data source settings and previewing successfully, click Add Dynamic Parameter.

Rules for Adding Parameters

Before adding dynamic parameters, note the following restrictions:

1. Add Dynamic Parameter is available only after all required data source fields are configured.
2. When you click the button, the system retrieves field names from the database table or dataset. If field retrieval fails, the system reports an error directly.
3. Dynamic parameter names must be unique at the task level and support Chinese, English, _, and -.

Step-by-Step Guide

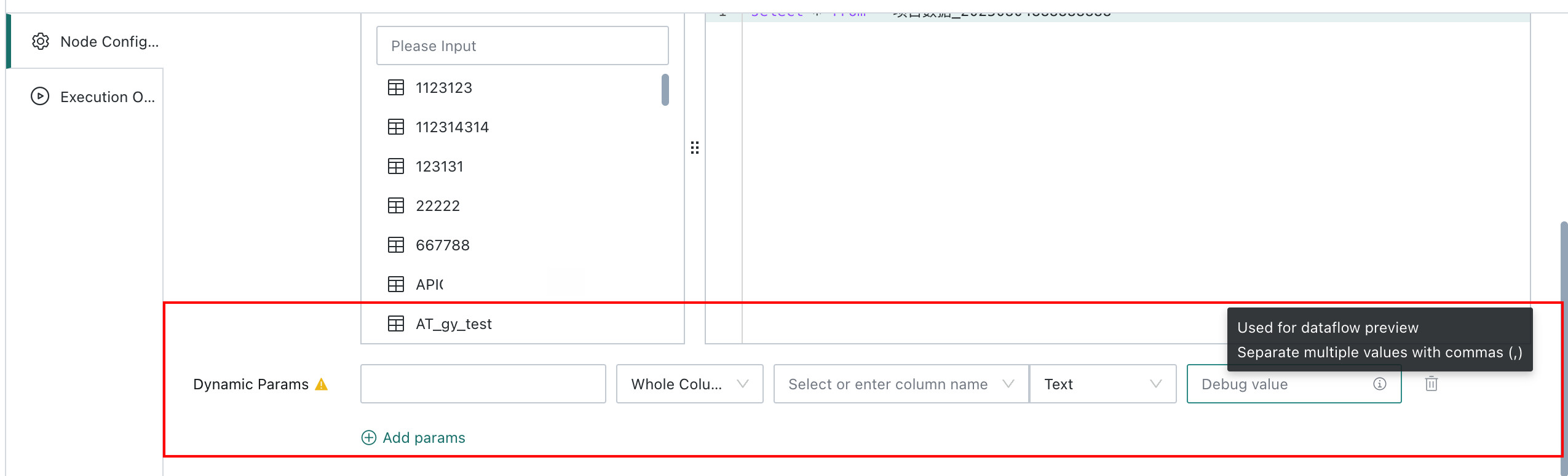

1. On the Parameter Assignment Node Configuration page, click Add Dynamic Parameter.
2. In the dynamic parameter configuration area, fill in the basic parameter information.

Configuration Item	Description
Parameter Name	Required. Must be unique at the task level.
Value Type	Supports Date, Text, and Numeric.
Value Source	Specifies how the parameter value is extracted from the query result.
Debug Value	Optional. Used only for downstream node preview.
Display Area	Shows the current parameter configuration.

3. In Value Source, choose the extraction method.

Extraction Method	Description
Full Column	Uses one field as the value source for the full column. Up to 500 values are supported.
Single Value	Extracts a single value from one field. By default, the value from the first row is used.

4. If you need to verify logic during Dataflow Node preview, fill in Debug Value.
   The system uses this value only during preview.

Debug Value is used only for preview and does not replace the actual runtime value retrieved from the data source.

Use Assigned Parameters in Downstream Nodes

This section describes where dynamic parameters generated by the Parameter Assignment node can be referenced and how they are used in different nodes.

Entry Point

When a Parameter Assignment node is upstream of another node, the assigned parameters can be referenced in the parameter input area of that downstream node.

Supported Reference Scope

Downstream nodes support these assigned parameters in the following scenarios:

Node or Capability	Reference Location
Dataflow Node / DB Dataflow	General parameter input area
Database Input	SQL Query
Database Output	Pre-Cleanup
Output Dataset	Incremental and Pre-Cleanup
File Input	File Address and File Name
ERP	Data Filter
Add Calculated Column	Expression configuration area
Group Aggregate	Add Calculated Column
Filter Data Rows	Filter condition area
SQL Input	SQL content area
Python Node	Python Script
SQL Node (Advanced)	SQL Script
HTTP Node	Request Parameters and Request Body
Conditional Branch	Condition configuration area

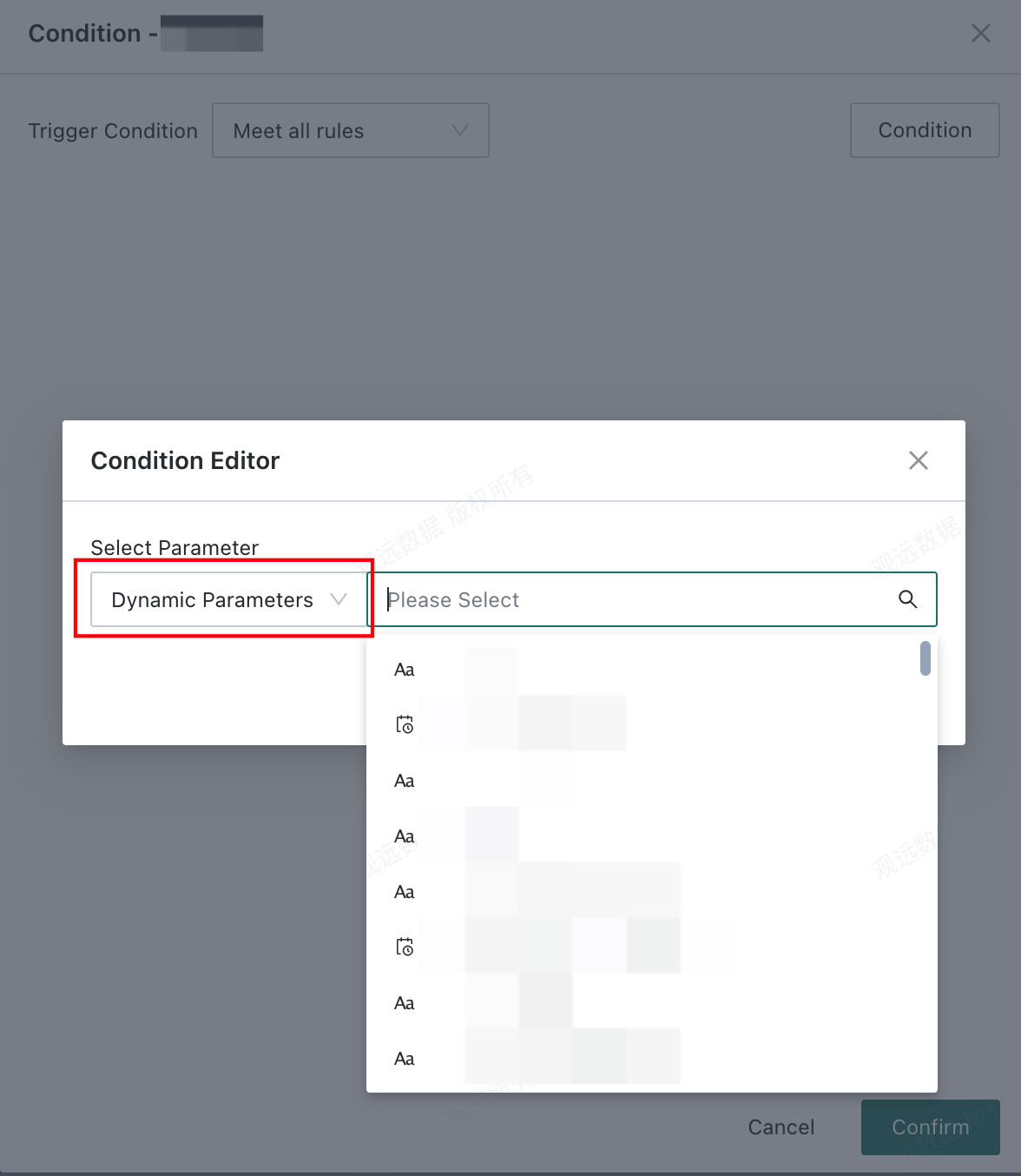

Usage Rules in Conditional Branch

Dynamic parameters can be used directly in the Conditional Branch node.

1. In the condition configuration area of the Conditional Branch node, select a dynamic parameter as the condition item.
2. The system provides available condition methods based on the dynamic parameter’s Value Type.
3. In Comparison Item, the system shows available dynamic parameters based on prior configuration and the parameter value type.

Usage Rules in Subprocess

When assigned parameters are passed to a Subprocess node, they are only available inside that subprocess and are not exposed externally.

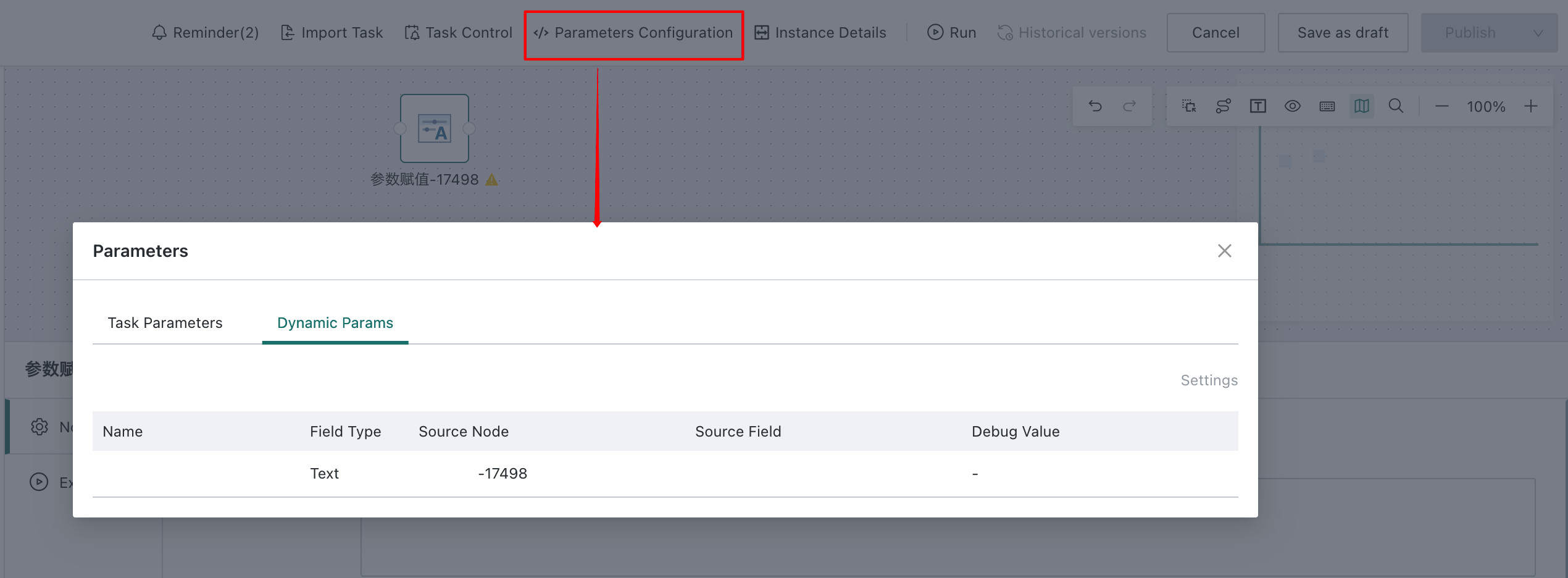

Display in the Task Parameter List

This section explains how the task parameter area distinguishes regular task parameters from dynamic parameters, making it easier to identify parameter sources during editing and debugging.

Display Rules

The task parameter area distinguishes between Task Parameters and Dynamic Parameters [DATADRIVEN_PARAMS.].

Parameter Type	Description
Task Parameters	Existing task parameters, maintained using the original logic.
Dynamic Parameters	Generated by the Parameter Assignment node and cannot be modified manually in the parameter list.

Display Fields for Dynamic Parameters

Dynamic parameters display the following information in the parameter list:

Field	Description
Parameter Name	The name of the dynamic parameter.
Value Type	The data type of the dynamic parameter.
Source Node	The Parameter Assignment node that generated the parameter.
Debug Value	The currently configured debug value.

View Runtime Logs and Instance Parameters

This section explains where to view assignment results after the node runs and how the system displays failure reasons.

Runtime Logs

After the Parameter Assignment node finishes, the runtime log shows the parameter values or failure reasons for each node.

1. Open the log information of the Parameter Assignment node in workflow instance details or node runtime logs.
2. Review the result of each Parameter Assignment node.

Log Content	Description
Node Name	The specific name of the Parameter Assignment node.
Parameter Value	The actual value generated by the node.
Failure Reason	Displayed when value retrieval fails.

Instance Runtime Parameters

The runtime parameter area of a workflow instance also displays assigned parameters so you can review all final execution parameters in one place.

Field	Description
Parameter Name	The name of the assigned parameter.
Source Node	The node that generated the parameter.
Value Type	The data type of the parameter.
Actual Value	The real value retrieved at runtime.

Notes and FAQ

This section summarizes key restrictions, warnings, and common questions for the Parameter Assignment node.

Notes

• If the data source, query SQL, or other required configuration changes after dynamic parameters have been configured, preview the data again.
• The Full Column extraction method supports up to 500 values. If the result exceeds this limit, filter the result set first with SQL.
• The Single Value method uses the value from the first row by default.
• Dynamic parameter names must be unique at the task level. Avoid duplicate names with existing task parameters.

FAQ

• Question: Why can’t I add a dynamic parameter?
  Answer: Make sure all required data source fields are configured and the data preview has completed successfully. If the issue remains, check whether the database table or dataset fields were retrieved successfully.
• Question: Why can’t I use a dynamic parameter in a Dataflow Node?
  Answer: Confirm that the Parameter Assignment node is upstream of the current Dataflow Node. Also check whether a Debug Value is configured. Without a debug value, Dataflow Node preview does not support the parameter.
• Question: Why does the existing dynamic parameter become invalid after I modify SQL?
  Answer: After the SQL changes, the returned fields may also change. Preview the data again and revalidate or adjust the dynamic parameter configuration based on the latest fields.
• Question: Why can’t I see an assigned parameter in Conditional Branch?
  Answer: Confirm that the Parameter Assignment node is upstream of the current Conditional Branch node, and make sure the parameter value type is compatible with the current comparison condition.
• Question: Why is no parameter value generated after execution?
  Answer: Check whether the query result is empty. If the source data is empty, the system reports that the table or dataset is empty and no value can be assigned.

Terminology

This section explains key concepts related to the Parameter Assignment node.

Term	Description
Parameter Assignment Node	A node type in a workflow that converts query results from a database or BI dataset into parameters that can be referenced by tasks.
Dynamic Parameter	A parameter generated by the Parameter Assignment node and referenced by downstream nodes at runtime.
Task Parameter	A parameter preconfigured at the task level, distinct from runtime-generated dynamic parameters.
Debug Value	A temporary parameter value used only for Dataflow Node preview and not for formal execution.
Value Type	The data category of a dynamic parameter, including date, text, and numeric.
