Create a Data Model

Overview

This feature is designed to optimize the table-creation workflow when configuring data writeback to a database. When the corresponding target table does not yet exist in the target database, the system can automatically generate a CREATE TABLE statement based on the schema of upstream nodes, while still allowing users to customize field length, primary keys, and table parameters.

Steps

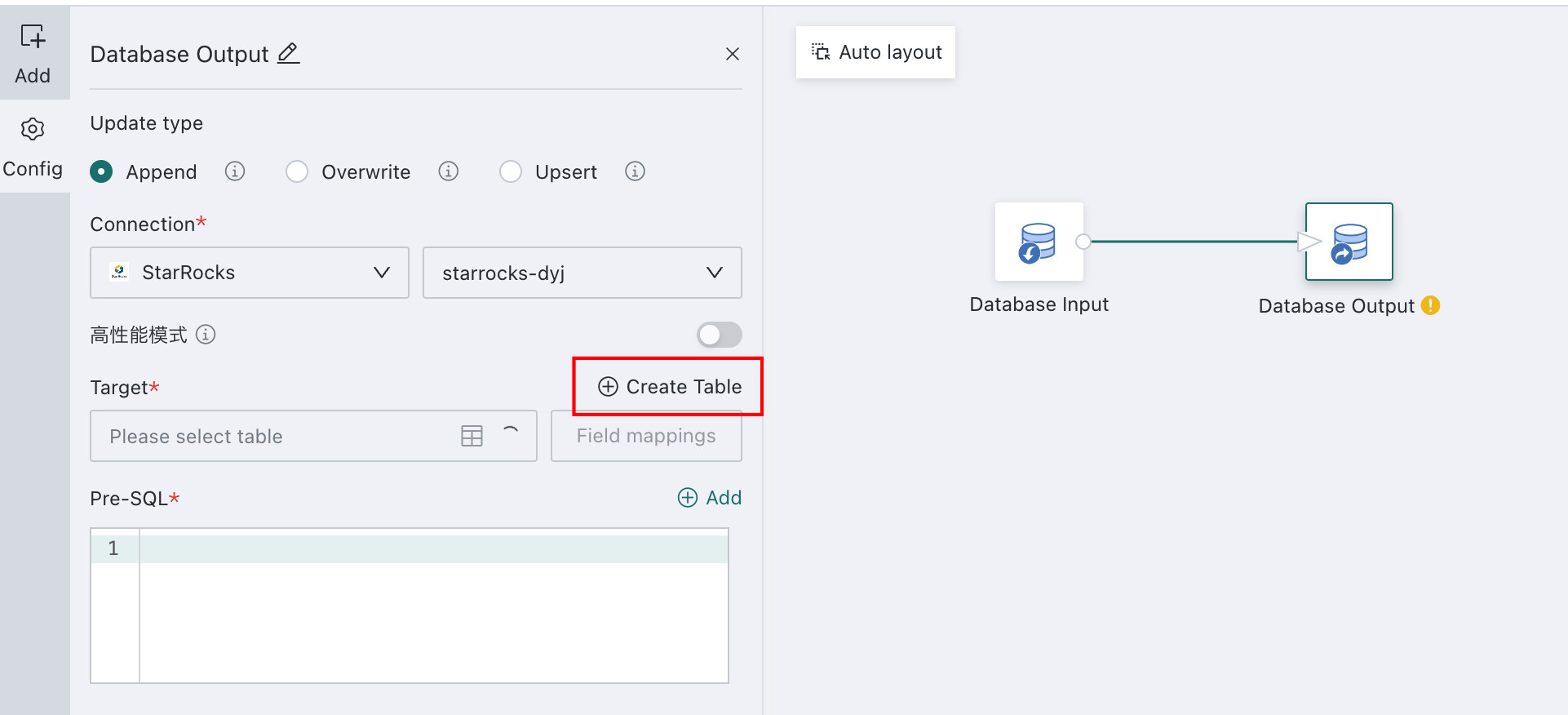

  1. In the Offline Dev dataflow editor, drag a Database Output node into the canvas. Click the node to open the node configuration page, then click Create Table.

  2. Set the table-creation parameters. In the Execute Table Creation dialog, fill in the relevant parameters according to the database type.

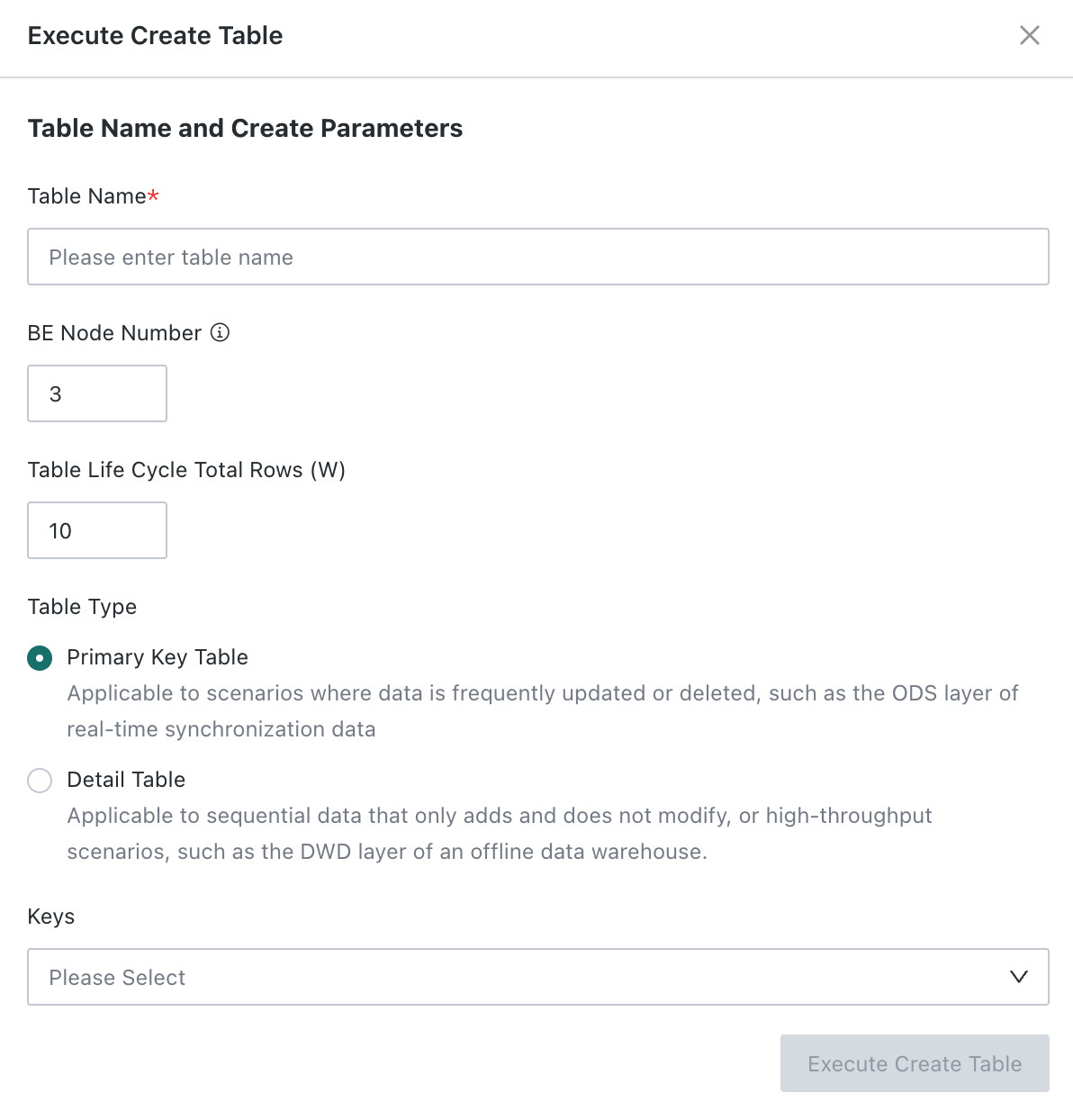

    • When Data Connection is set to StarRocks (SR), configure the following:
      • Table name: required. Enter the database table name. For some common data warehouses, you can generate a more appropriate table statement by configuring dedicated parameters.
      • Number of BE nodes: default value is 3.
      • Total number of rows during the table lifecycle: the system uses this parameter together with the number of nodes to automatically calculate a reasonable replication factor and bucket count.
      • Table type: Primary Key Table is suitable for scenarios in which data is frequently updated or deleted, such as a real-time sync ODS layer. You must specify the primary key field. Detail Table is suitable for append-only transaction data or high-throughput scenarios.

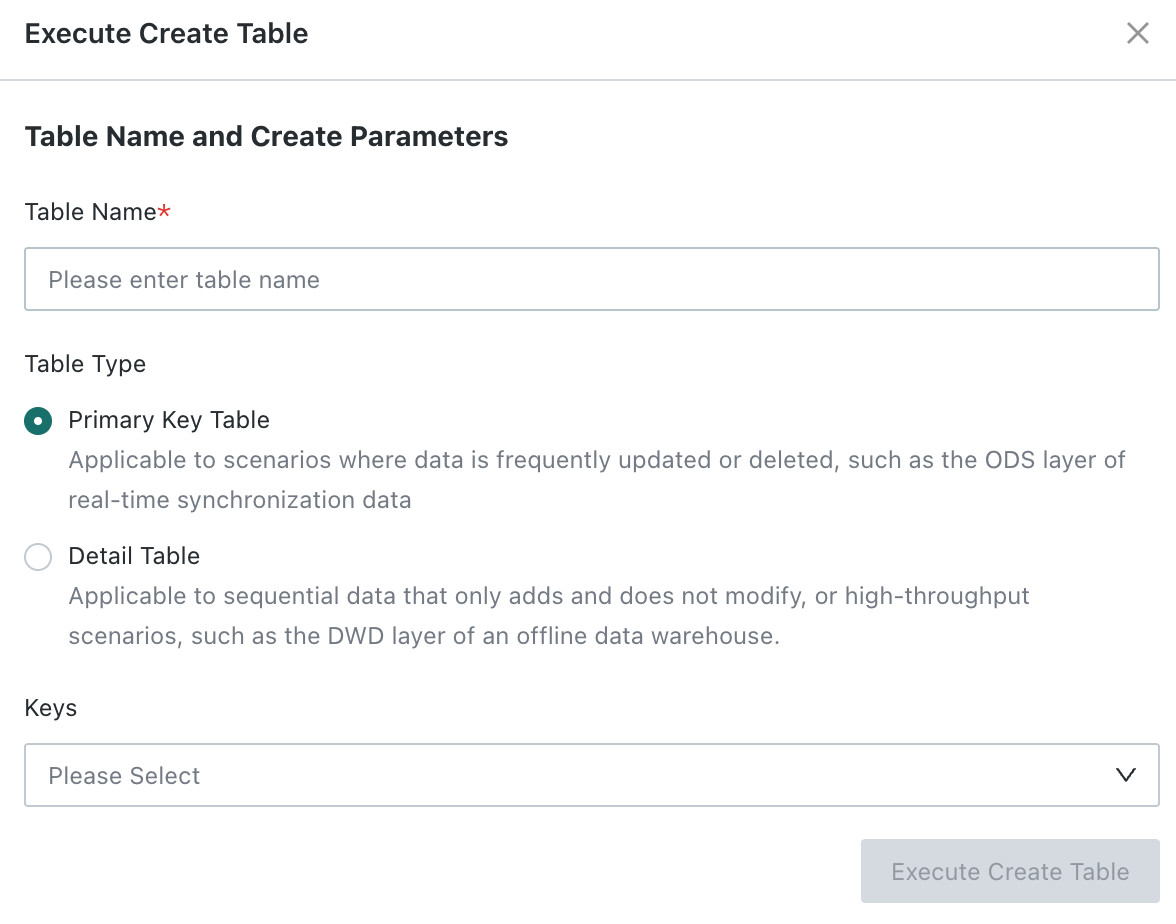

    • When Data Connection is set to Doris, SelectDB, or GaussDB, configure the following:
      • Table name: required. Enter the database table name. For some common data warehouses, you can generate a more appropriate table statement by configuring dedicated parameters.
      • Table type: Primary Key Table is suitable for scenarios in which data is frequently updated or deleted, such as a real-time sync ODS layer. You must specify the primary key field. Detail Table is suitable for append-only transaction data or high-throughput scenarios.

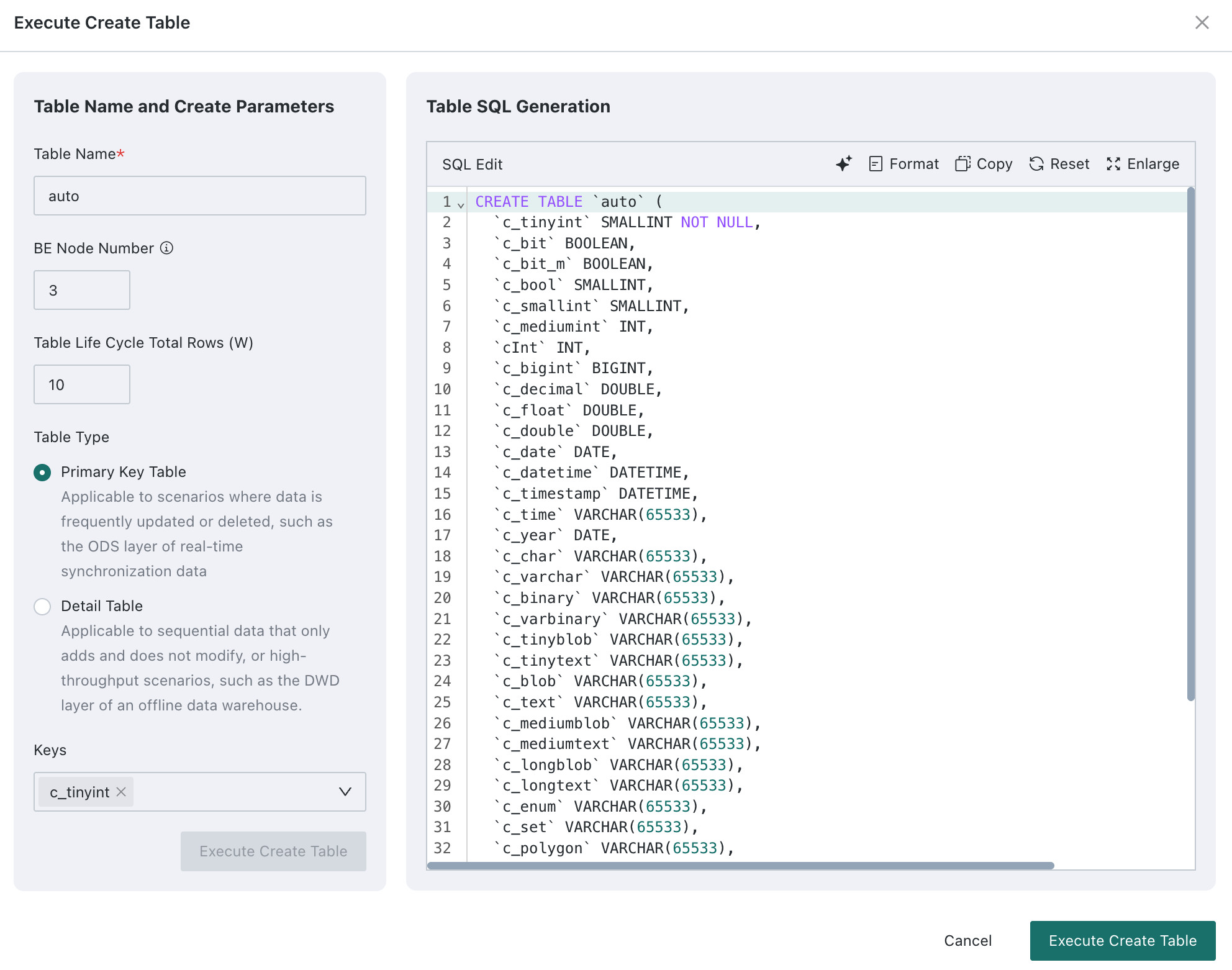

  3. Click Excute Create Table. The system automatically generates the CREATE TABLE statement based on the table name, table-creation parameters, and upstream schema.

    • For StarRocks, the default storage medium type is HDD, which you can modify according to actual needs.
    • For GaussDB, the system creates a column-store table by default. The default compression type is low, and the default compression level is 0. Higher numeric values save more space but generally reduce query performance.

  4. Modify the custom SQL if needed. During editing, you can format, copy, reset to the auto-generated original SQL, and enlarge the editor.

  5. After confirming the SQL is correct, click Execute Table Creation. The system pushes the SQL to the target database for execution.

  6. Review the execution result.

    • Success: the dialog closes automatically, and a success message is shown in the upper-right corner. The newly created table can then be used as the target table.
    • Failure: the page remains open and displays the failure reason. You can correct the issue and run it again.
