Conditional Branch

Overview

In data development scenarios, you may need to execute different downstream logic based on the value of a variable. The Conditional Branch node provides if-style control logic to manage downstream execution flexibly.

Node Configuration

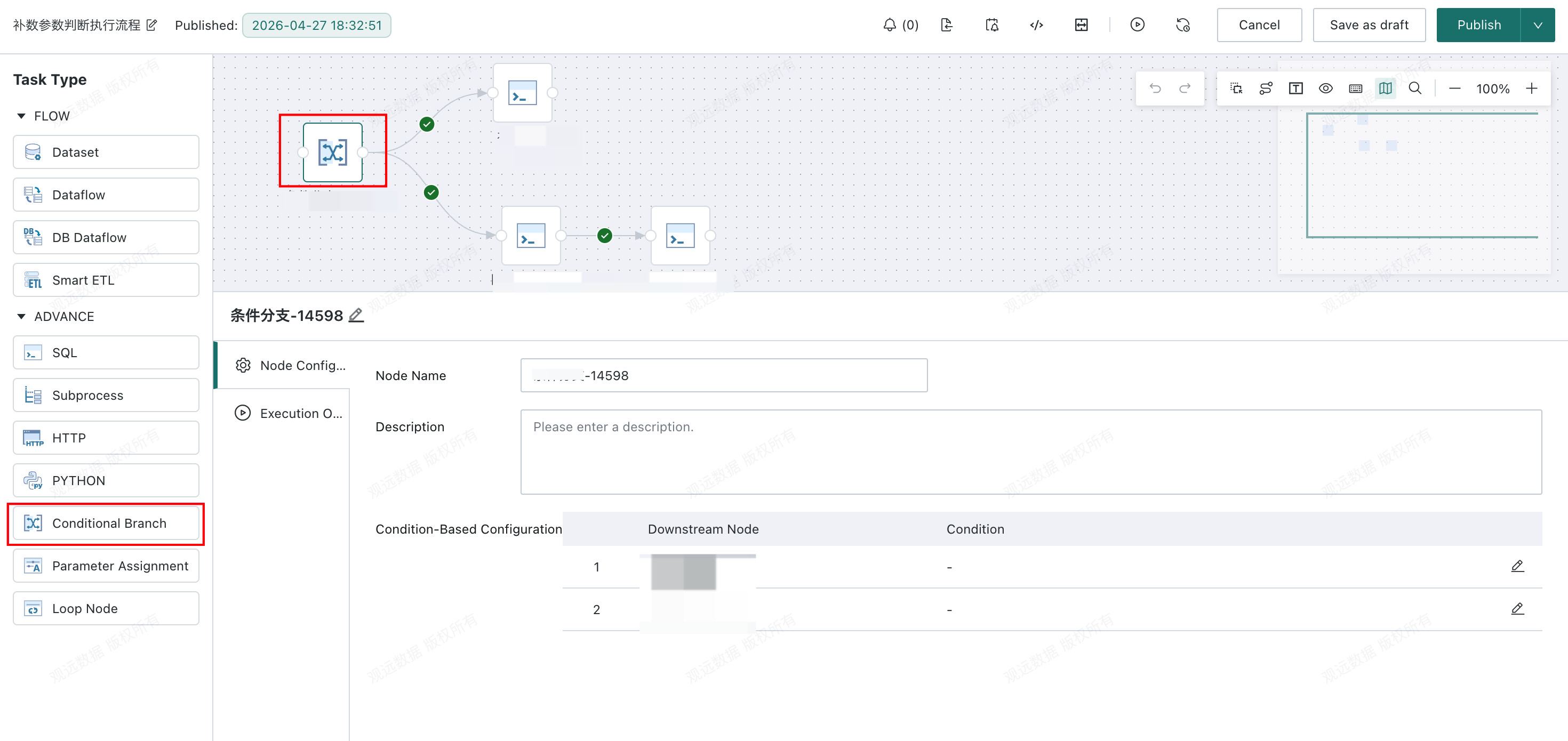

  1. Drag the Conditional Branch operator from the operator panel into the canvas on the right. A Conditional Branch usually connects to two or more downstream nodes.

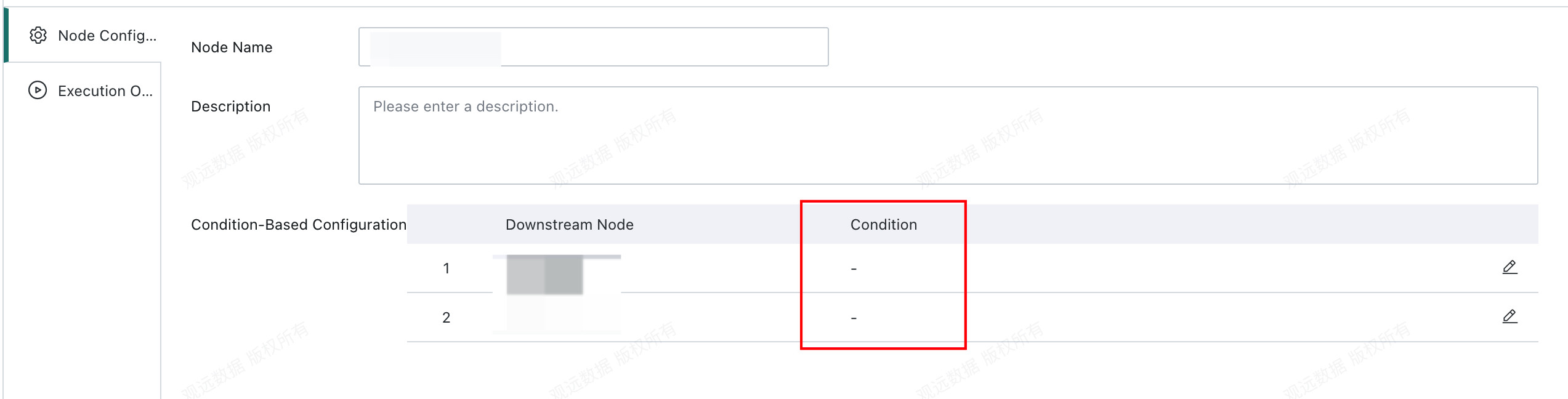

  2. Conditional Branch is typically used together with parameters. Configure the run condition for the node:

    • If the condition evaluates to true, downstream nodes run.
    • If the condition evaluates to false, downstream nodes do not run.
    • If no condition is configured, downstream nodes run by default.

Add Conditions

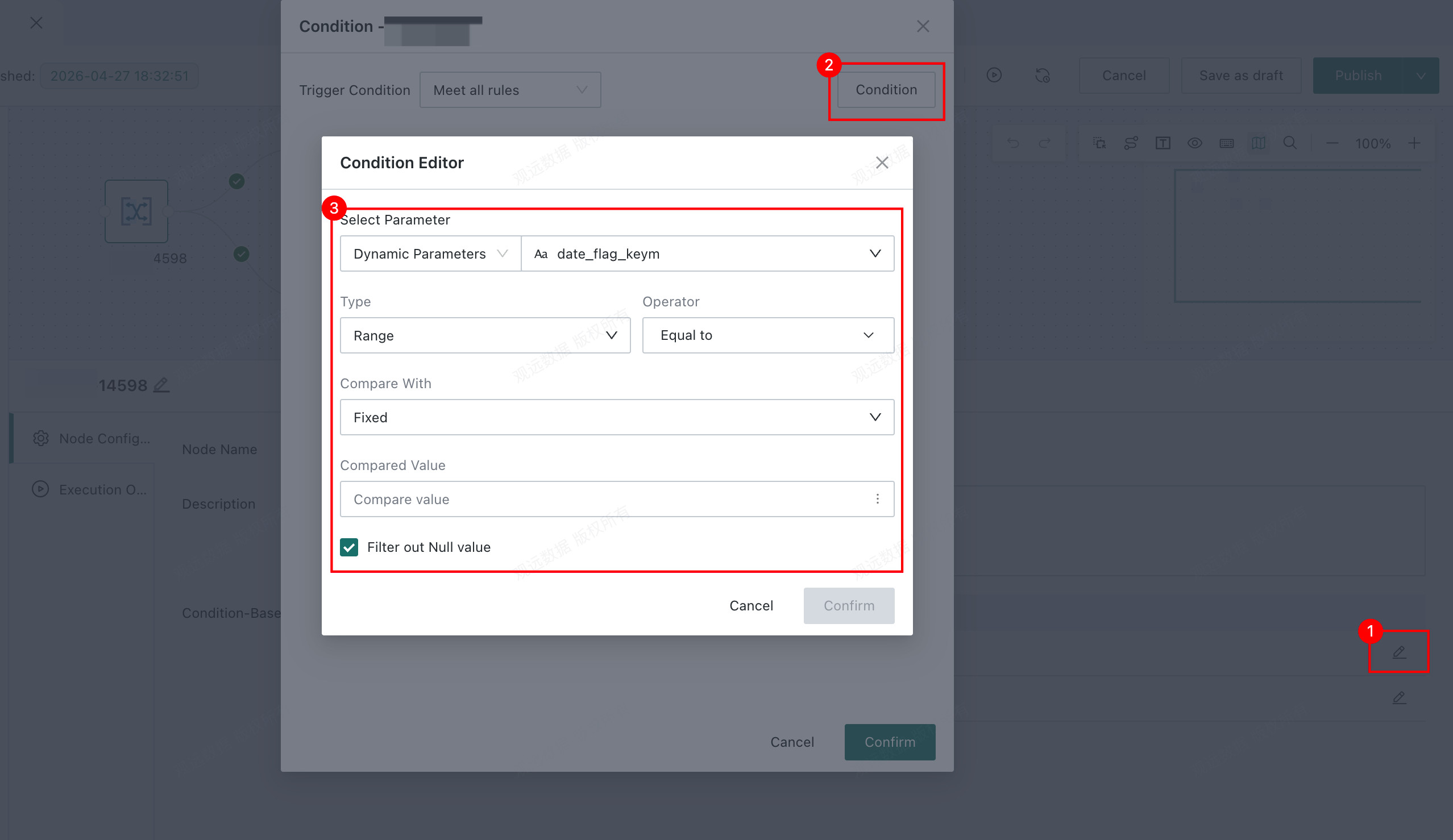

Click Add Condition to configure branch conditions.

  • Select parameter: Global parameters, time macros, and task parameters are supported.
  • Type: Range and Condition are supported. Numeric and date types only support Range; text supports both Range and Condition.
  • Operators:
Parameter TypeTypeOperator
NumericRangeLess than, less than or equal to, greater than, greater than or equal to, equal to, not equal to, between, equal to Null, not equal to Null
DateRangeLess than, less than or equal to, greater than, greater than or equal to, equal to, not equal to, between, equal to Null, not equal to Null
TextRangeLess than, less than or equal to, greater than, greater than or equal to, equal to, not equal to, between, equal to Null, not equal to Null
TextConditionEqual to, not equal to, contains, does not contain, starts with, ends with, does not start with, does not end with
  • Comparison item: Compare against a fixed value or another parameter.
  • Comparison value: Enter a fixed value or choose a parameter.

Configure Multiple Conditions

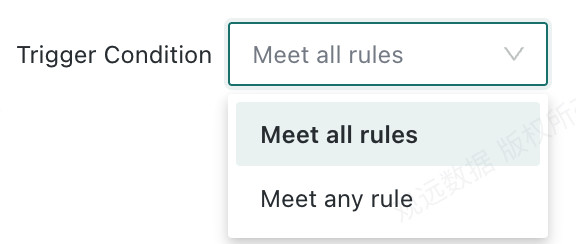

When multiple conditions exist, configure the trigger rule:

  • Meet all rules: Returns true only when all conditions are true.
  • Meet any rule: Returns true when any condition is true.

|300

Runtime Options

You can enable or disable the node. When disabled, the workflow skips the Conditional Branch and runs downstream nodes directly.
