Frontend Page Customization with Web Components

Flexible customization of Guandata BI frontend pages is a strong requirement for many customers, so Guandata provides corresponding capabilities based on real customer scenarios.

This article introduces methods and examples for implementing frontend page customization based on Web Component technology.

Overview of Open Capabilities

Guandata frontend code includes a built-in star-nova.js file, which is empty by default. When you need to override specific elements, you can implement the required code in that file. The underlying principle is Web Components. For a detailed explanation of this technology, refer to the article from the Guandata technical team.

When rendering a page, Guandata BI checks whether the constructor of a custom element exists. If it does, the custom element is rendered in a fixed position on the page, and the corresponding parameters are passed to it.

The currently supported page elements, scenarios, and examples are as follows:

Supported Custom Page Element	Application Scenario	Example Use Case
page-feedback	Add a floating button on a Dashboard page	Quickly initiate feedback from the page; integrate the page with other business systems
login-boxlogin-box-mobile	Customize login-page logic	Implement custom password validation logic and customized image and button display
feishu-login-qrcode	Replace Feishu QR code display logic	Implement Feishu QR code login in private deployment scenarios

For more requirements, feel free to contact us. Guandata always embraces openness and continues to expand related capabilities.

Scenario 1: Custom Floating Button on a Page

Custom element name: page-feedback

Parameters passed:

• userid: UUID of the current user
• loginid: the account used for login
• pgid: page ID

Applicable pages:

• Desktop: Dashboard pages, Dashboard casting pages, desktop application pages
• Mobile: Dashboard pages, lightweight application pages

Description

Does not include custom report pages or custom list pages.

Floating button position:

• Desktop: lower-right corner of the page, container size 48px * 48px
• Mobile: container size 50px * 50px

Desktop effect example:

When features such as Quick Query are enabled on mobile pages, the custom button is collapsed by default and can be expanded by tapping it, as shown in the left figure.

Code Example

This example opens the Baidu home page on desktop and the JD.com home page on mobile after the floating button is clicked, while passing the corresponding parameters.

Code download, change the file suffix to .js after downloading:

guandata-star-nova-demo.txt

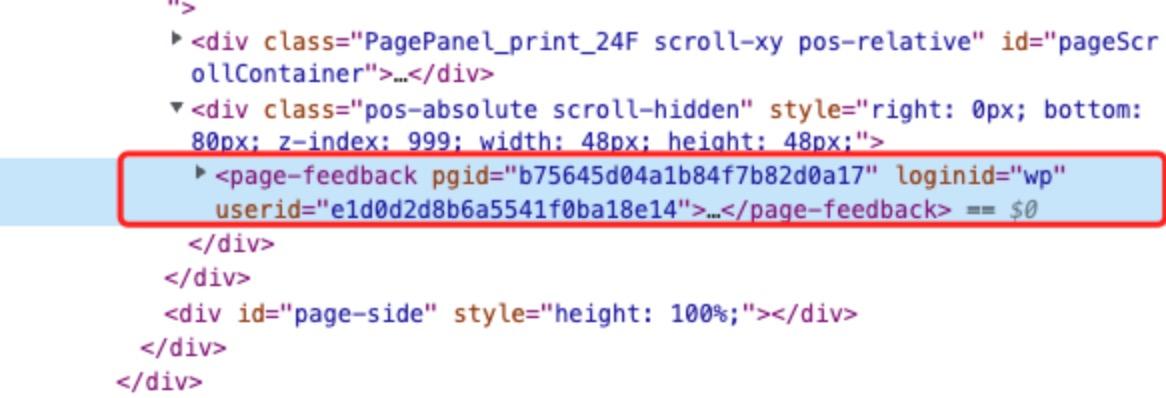

After successful rendering, the page structure of the custom element is shown below:

The outer div is the container where the custom element is rendered.

Code Deployment

Please contact Guandata.

Scenario 2: Custom Feishu QR Code

Custom element name: feishu-login-qrcode

Parameters passed:

• gotourl: the QR code display logic used in standard mode. The corresponding app_id configured in the backend can be parsed from it.

Applicable pages:

• Desktop: login page

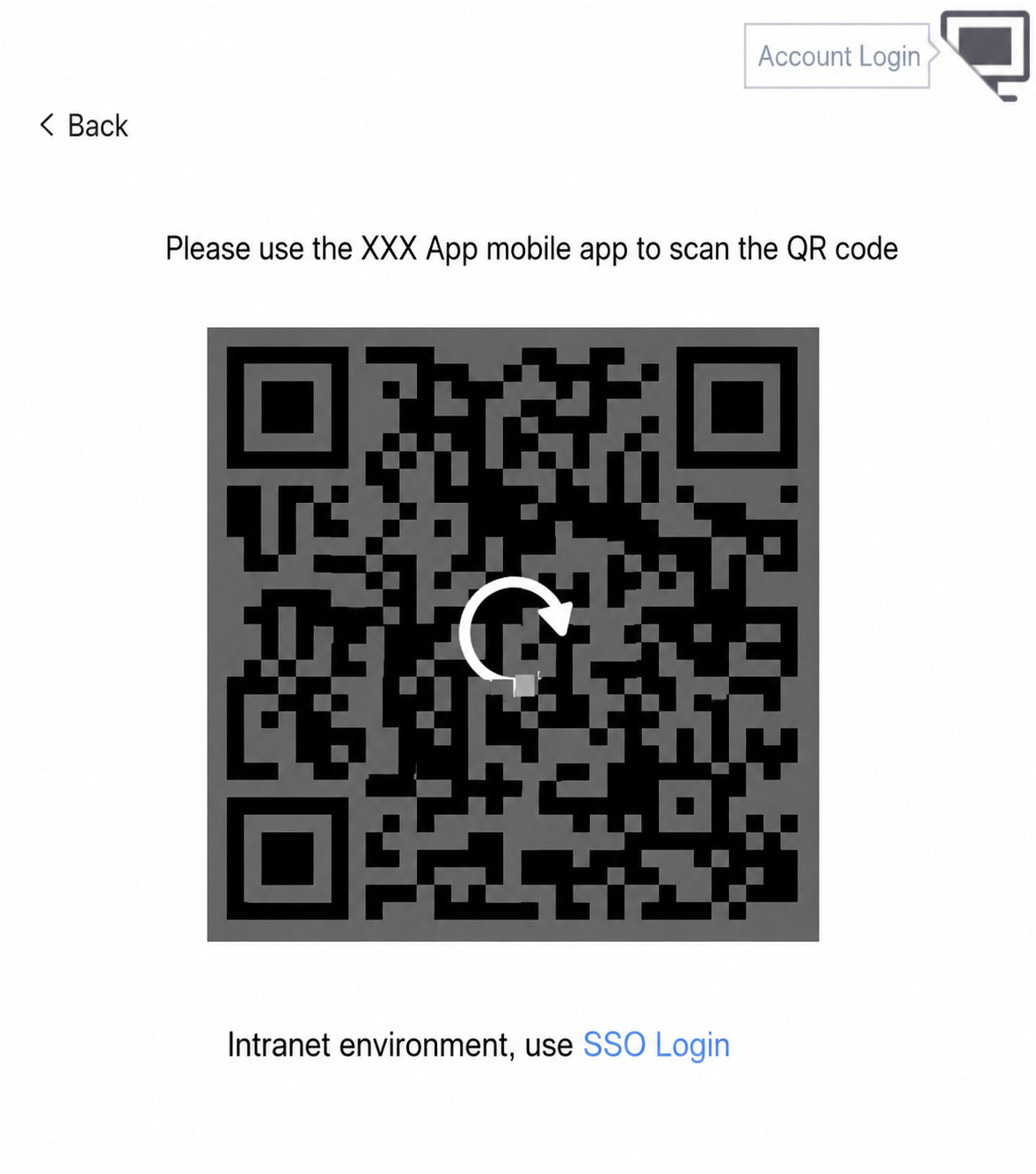

Effect example:

For code examples and deployment, please contact Guandata.
