Implement Row Totals in Complex Reports

Online editing mode syntax: =G_COLTOTAL(view name, field 1|field 2..., start calculation position, number of interval expansion columns for values, horizontal expansion offset)

Local editing mode syntax: &&=columnTotal9(<derived table>,<derived table field position>,<number of interval expansion columns for values>,<offset>)

The formulas are expressed differently in the two modes, but the implementation logic is the same. This document mainly introduces how to implement row totals in online editing mode.

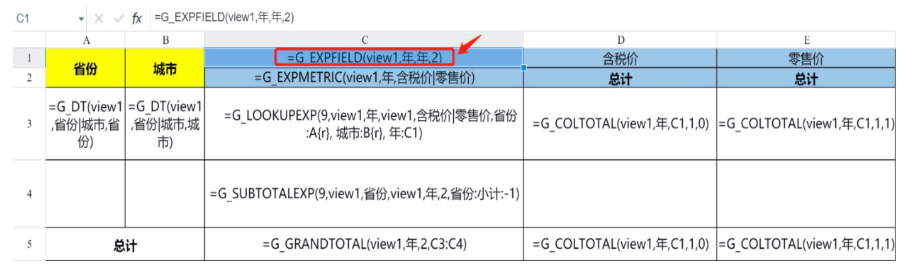

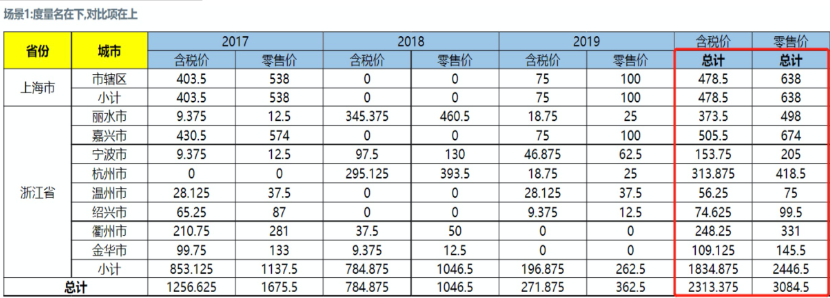

Scenario 1: Measure Names Below and Comparison Items Above

Online Editing Mode

Tax-Inclusive Price total: =G_COLTOTAL(view1,Year,C1,1,0)

Retail Price total: =G_COLTOTAL(view1,Year,C1,1,1)


Formula breakdown:

  1. G_COLTOTAL: row total. The default aggregation type is sum, so sum does not need to be written again.

  2. view1: view name.

  3. Year: a field in view view1, indicating that values are summed by the Year field in the table. If there are multiple fields, concatenate them with |.

  4. C1: start calculation position.


  1. 1: number of interval expansion columns for values. In this case, 1 column is expanded, for a total of 2 columns.

  2. 0: horizontal expansion offset. Because the horizontal expansion start position is C1 and Tax-Inclusive Price is expanded first, the offset is 0.

The offset for Retail Price total is 1, because Tax-Inclusive Price is expanded first, and Retail Price is expanded afterward.

Local Editing Mode

Tax-Inclusive Price total: &&=columnTotal9([DT|view1!Year],C1,1,0)

Retail Price total: &&=columnTotal9([DT|view1!Year],C1,1,1)

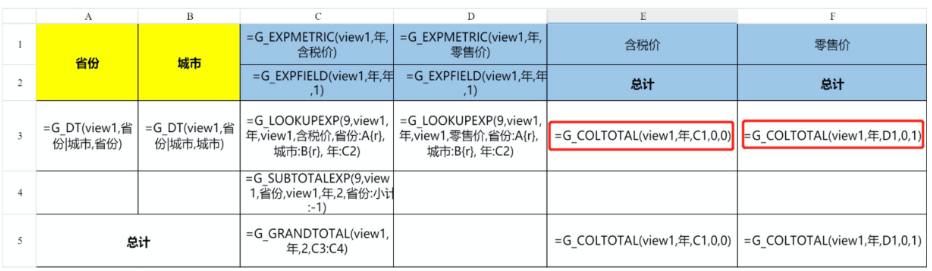

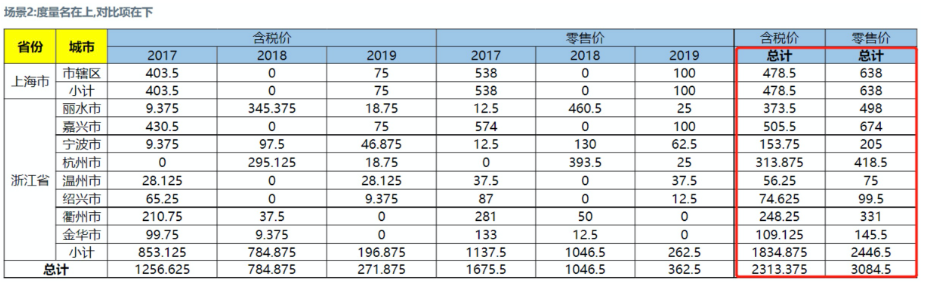

Scenario 2: Measure Names Above and Comparison Items Below

Online Editing Mode

Tax-Inclusive Price total: =G_COLTOTAL(view1,Year,C1,0,0)

Retail Price total: =G_COLTOTAL(view1,Year,D1,0,1)


For the formula breakdown, refer to case 1. The differences are:

  1. The number of interval expansion columns for values becomes 0, indicating that no interval is used for Tax-Inclusive Price. In other words, Tax-Inclusive Price is not written across columns.

  2. The derived table field position for Retail Price changes to D1, because the horizontal expansion start position for Retail Price is D1.

  3. Because the horizontal expansion start position D1 for Retail Price is after the first horizontal expansion of Tax-Inclusive Price (C1), the offset is 1.


Local Editing Mode

Tax-Inclusive Price total: &&=columnTotal9([DT|view1!Year],C1,0,0)

Retail Price total: &&=columnTotal9([DT|view1!Year],D1,0,1)

For specific formulas, see Complex Report Online Editing Mode Formula Description and Complex Report Local Editing Mode Formula Description.
